Precision Air Conditioner RANGE

Precision Air Conditioners :

Model : MASTER Under & Over ( Indoor Units) :

2-25 TR  / 7-90 KW.

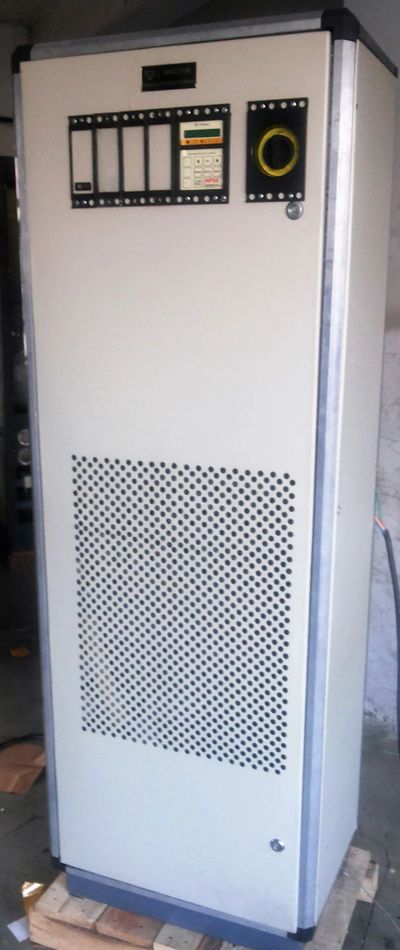

ULTRAMATIX MASTER range of Precision Air Conditioners include Air /Water Cooled Indoor units in OVER (UP-FLOW ) & UNDER (DOWN-FLOW) models are available in cooling capacities of 2 tons to 25 tons or 7-90 KW . They are made with matching air/water cooled condensers/ Outdoor Units  mounted remotely .These Precision Air Conditioners incorporate  following main components :

• Scroll /Digital Compressors with electronic HP /LP cutouts.
• EC /Centrifugal Blower Fans.
• Humidifier with cleanable Cylinders .
• High watt Density Heaters in V shape with aluminum fins .
• De-humidification Valves.
• Large size Cooling Coil with Copper Tubes & Aluminum Fins fitted with Stainless Steel Water Drain Trays.
• Anodized Aluminum Channel body with glass nylon corners & powder coated insulated Doors.
• Electric Control Panels with front door interlocked ON/OFF Switch, MCB's, Over Load Relays & Contactors for each main device.
• MP-99 Microprocessor Controller for management of the unit.
• Anti Vibration Mountings .
• Liquid Receiver with Pressure Relief Valve.
• Serial Port Output for connections to Remote Monitoring  System

ULTRAMATIX Precision Air Conditioners are available in sizes S00 to S6 Covering the entire cooling range of 2 -26 Tons/ 7 -90 KW in following  sizes:

• S00  :  2 -3 TR /7-10 KW
• S0    :  3-4 TR /10-12 KW
• S1    :  4-6 TR/ 14-20 KW
• S2    : 6 -8.5 TR/20-28 KW
• S3    : 10-13 TR/35-45 KW
• S4    : 15-18 TR /50-65 KW
• S6    : 20-26 TR/ 70-90 KW

CVE  Air Cooled Condensers

( Outdoor Units ) :

ULTRAMATIX Air cooled condensers are made matching with the cooling capacity of the Precision Air Conditioner  unit & maximum summer ambient temperature at the location of installation. They consist of MS / GI Sheet fabrication with powder coating & a large are heat rejection cooling coil made of Copper Tubes & Aluminum Fins.  Specially designed AC / EC Axial fans are used to offer higest air flow & very low maintainence .They can selected for use  with variety of summer ambient temperatures from 32  to 55 deg C  and mainly consist of :

• Large Cooling Coil with Copper Tubes & Aluminum Fans .
• IP 64 Rains /Water  Proof MCB Box for housing ON/OFF MCB .
• AC Axial /EC Axial fans with  Higher CFM & speed control.
• Suction & Discharge Split Valves .
• Heavy Duty lifting handles on both sides for ease  of locating.
• MS U channel mounting brackets & MS L Channel  Mounting Stand .
• Earthing Connections on both side of condenser for ease of wiring.

CVE Series Air Cooled Condensers are available in following Models :

• CVE -2
•  CVE-4
•  CVE-5
•  CVE-8
• CVE-10
• CVE-15.
• CVE-20
• CVE-25
