Precision Air Conditioner -Features

SCROLL / DIGITAL Compressors

Imported Copeland / Manuropp Compressors with High COP for Precision AC Units.

EC Backward Curved Blowers

Electronically Commuting Blowers with backward curve blades for higher CFM & Low Noise.

Centrifugal Blowers

Direct Drive DD Centrifugal Blowers with built in electric motors mounted on AVMs used for increased air flow & quiet operation .

Humidifier

CAREL Humidifiers with Cleanable Steam Cylinders

Hi Watt Density Heaters with Aluminum Fins

High watt density Air Heaters for winter reheating with IMPORTED heaters in V shape with aluminum fins for quick heat dispersal

PRECISION AIR CONDITIONER-FEATURES

Electrical Panel with Switchgear

Large Cooling Coil with Stainless Steel Water Drain Pan

Comprehensive Electrical Panel consisiting of MCB's, Contactors with Over Load Relays, Panel interlocked ON/OFF Mains switch, Control Transformer and Terminal Blocks .

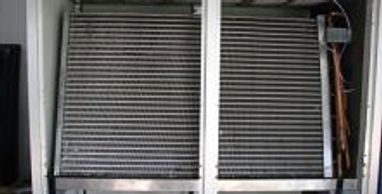

Large Cooling Coil with Stainless Steel Water Drain Pan

Units incorporate Large sized Cooling Coil with Copper Tubes & Aluminum Fins . Water Drain pan made of Stainless Steel is fitted to avoid rusting & contamination.

EC/AC Axial Fans for Condensers

Large Cooling Coil with Stainless Steel Water Drain Pan

EC/AC Axial Fans for Condensers

CVE Air Cooled Condensers are fitted with Electronically Commuting Axial Fans or AC driven Axial Fans with long lasting bearings & motors for ease of control & higher Air Flow.

99.9% Efficient Air Filters

Powder Coated Doors with 19mm thick Insulation & Gaskets

EC/AC Axial Fans for Condensers

Precision AC are fitted with 99.9% efficient Air Filters of EU4/EU5 grades to avoid dust particles gettgg into the supply air. Assures clean air supply .

Cabinet of Aluminum Channels

Powder Coated Doors with 19mm thick Insulation & Gaskets

Precision AC Unit cabinets are made with specially designed Aluminum Channels fitted with glass nylon corners & GI /MS powder coated internal Parts.

Powder Coated Doors with 19mm thick Insulation & Gaskets

Precision AC Cabinets use powder coated GI/MS doors which are fitted on aluminum channel frame with Stainless Steel hinges or bolts. Doors are fitted with 19mm thick Insulation & air tight PVC/ RUbber Gasket

Precision Air Conditioner-Features

Liquid Receivers With Pressure Relief Safety Valve

ULTRAMATIX Precision Air Conditioners use Liquid Receivers with In/Out ROtolock Valves & Pressure releif Safety Valve set at 400 PSI to protect the users from hi pressure gas explosions.

Electronic HP/LP Cutout Switch

Liquid Receivers With Pressure Relief Safety Valve

Electronic High/Low Pressure Cutouts are used on each Compressor to provide Compressor Tripping in case of pressure going above 350 PSI & below 45 PSI. They are connected to MP-99 to offer HP/LP Alarms & Tripping.

Air Flow Loss /Filter Clogged Alarms

Liquid Receivers With Pressure Relief Safety Valve

Air Flow Loss /Filter Clogged Alarms

Differential Pressure switches are used to offer Air Flow Loss & Filter Dirty/Clogged/Change FIlter Alarms through MP-99 Microprocessor.

Single /Reverse Phase Controller

Smoke /Fire Alarm

Air Flow Loss /Filter Clogged Alarms

Single Phase Preventer (SPP) /Reverse Phase Preventers are used to protect the unit from wrong phase sequence of Mains AC Voltage.

Smoke /Fire Alarm

A smoke/Fire Sensor can be connected inside the Precision AC to offer this alarm on MP-99 Microprocessor to switch off the air flow to stop fire circulation.

Water Under Floor Alarm

Smoke /Fire Alarm

Water Sensors are used on floor below the Down Flow Precision AC Units to detect water accumulation & give an alarm to the user.
